John Deere R-Series Boom Recirculation Kit


Boom Material and Length: 120ft Carbon Fiber



Easy to install in about one day

Compatible with Carbon Fiber and Steel Factory Booms

Compatible with Automatic and Manual Solution Controls

Compatible with Poly and Stainless Boom Plumbing

Works with any type of control system that shuts flow off at the nozzle

Dealer Program available

Exact Apply added a new dimension to the productivity of the R-Series Sprayer. BRS works hand in hand with Exact apply or other at the nozzle control systems for the R-Series John Deere Sprayers to take efficiency, and productivity to the next level while greatly reducing product waste and potential environmental harm.

 High productivity machines make every minute of operation that much more critical. Take your productivity to the next level with BRS boom recirculation for you John Deere R-Series sprayer equipped with Exact Apply or after market nozzle control system that turns solution flow on and off at the nozzle body.

BRS-With New Sprayers Depreciating at $200+/hour and the high cost of Crop Care Products. BRS-Offers Solid Payback on it's installed cost.

Save Time-Reduce Time Wasted Charging Booms and Rinsing out Your Sprayer

Better Use of Time Reduces Costly Machine Depreciation and Makes the most of Limited Spray Windows

Reduce Your Risk-Be More Confident in your Boom Clean-outs and Reduce the time it takes to perform them with reduced rinsate needed to be run slowly through nozzles.

Save Money-Greatly Reduce Chemical Waste Charging Booms. Reduce costly Depreciation on your Machine and increase trade value.

What is BRS boom recirculation and why will it make your operation more productive?

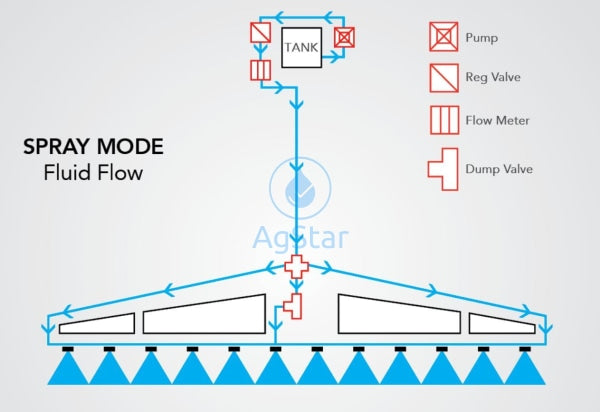

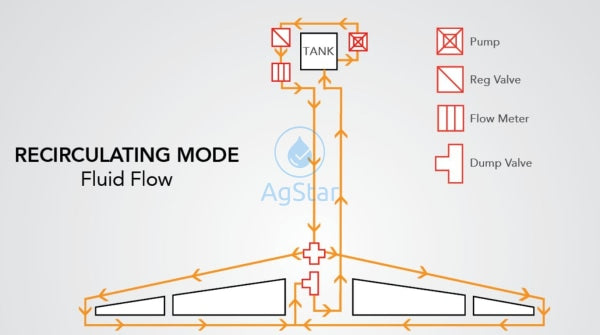

The BRS Boom Recirculation System allows the boom to be plumbed in a single boom line recirculation configuration. This allows the solution flow to travel through the boom and back to the tank when not spraying.

Pressurize and prime the spray line on the way to a job

That means an instant Start, for an immediate fully dispersed spray pattern saving time and chemical product waste

Flush boom lines to tank or to ground (safe disposal)

Provides dual options for drainage and disposal of left over product or rinsate

 Hygienic contamination prevention- Eliminates particles settling in boom lines or tank

Far less chance of Costly Carryover Damage from hung up product.

More efficient  rinse process to get back in the field crushing acres faster and with confidence


BRS Boom Recirculation System Key Benefits

-Improves efficiency allowing for more acres to be sprayed in the proper application window

-Minimizes the risk of costly carryover damage from product being trapped in boom supply lines

-Reduces operator stress and exposure to chemical


How Does it Work?

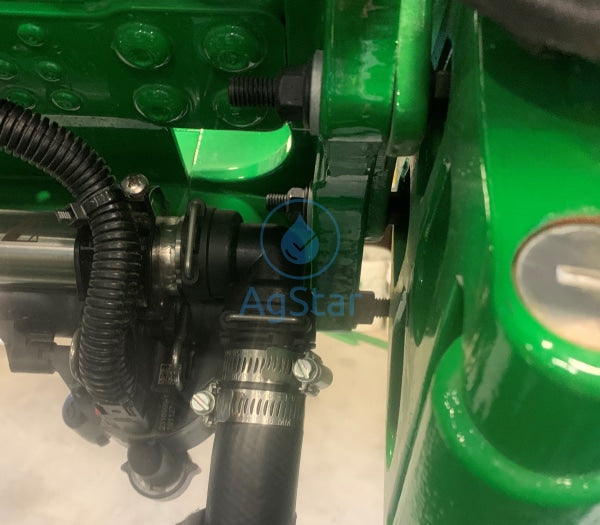

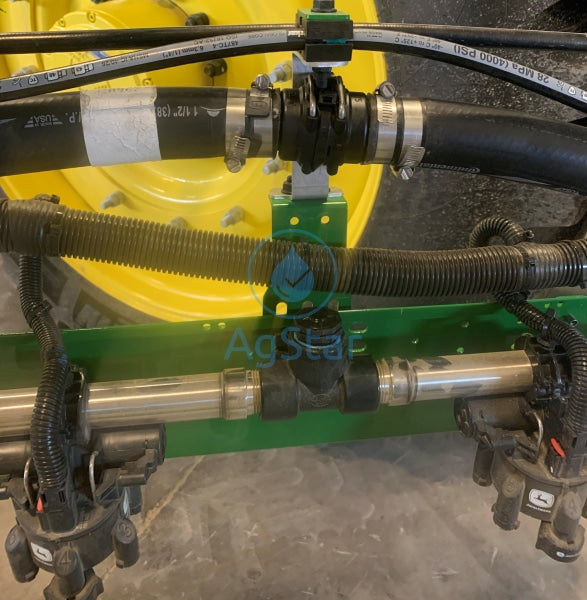

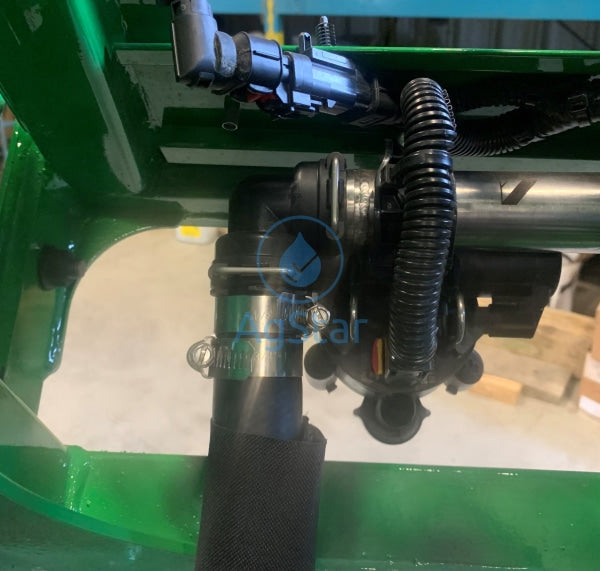

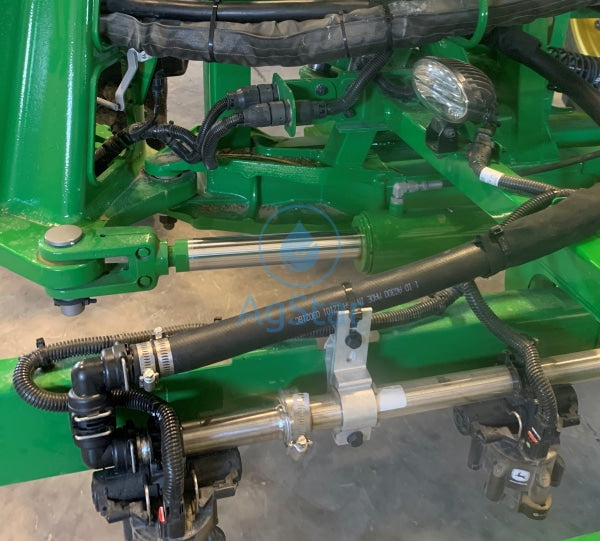

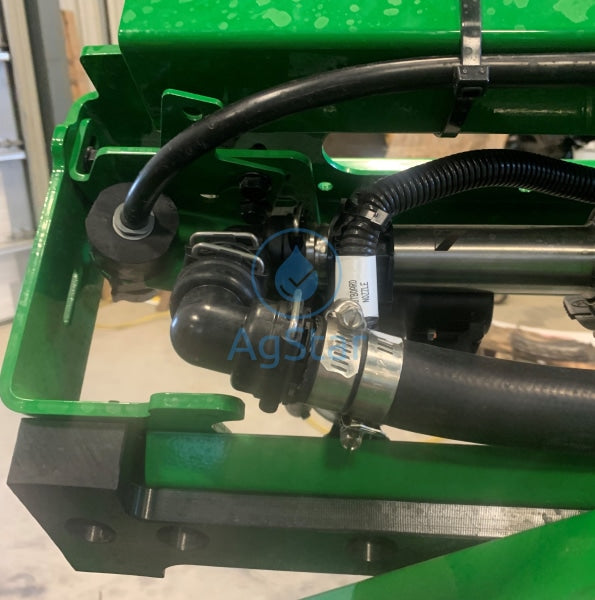

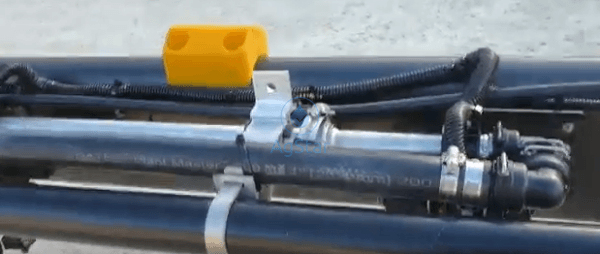

The system is enabled by replacing the boom section end aspirators with a specificially engineered fitting allowing the connection of all of the sections into a single (common rail) line.

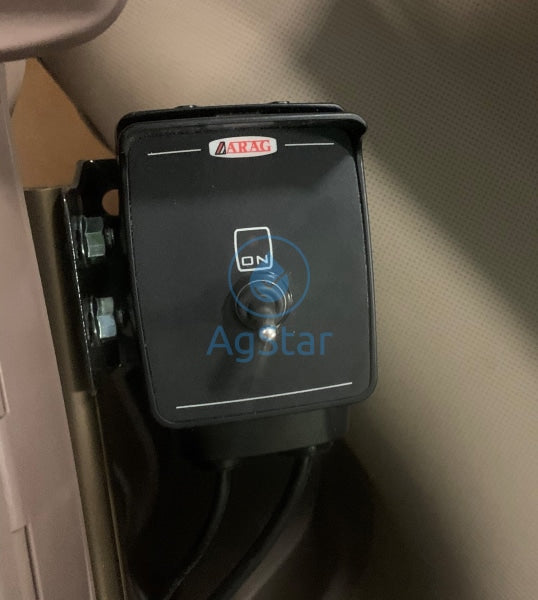

Switching between Spray and Recirculation modes is done by a single in cab switch.

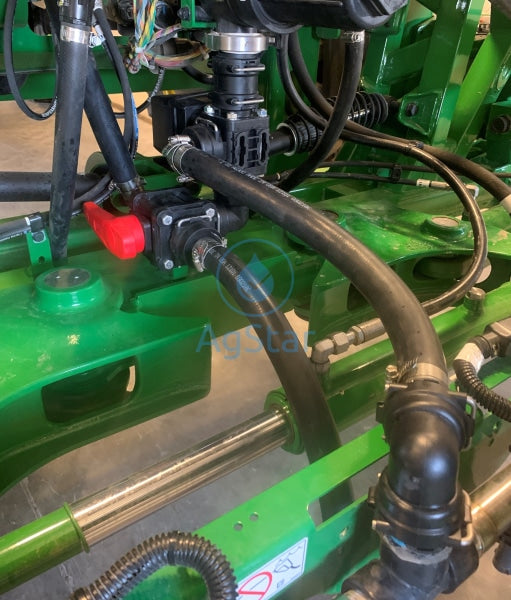

Flushing to ground (safe disposal), is done with a simple manual, ball valve

 Is it difficult to install and how long does installation take?

The kit is not complicated to install but will take some time to route hoses and secure them properly. The installation should take less than a day for first time installers

 Is anything else needed to complete installation?

The Kit includes all fittings, valves and the valve switch box.

 The installation support kits include:

-Black EPDM 300psi 1" Hose

-Black EPDM 300psi 1.25" Hose

-Hose Clamps

-O-ring Grease
