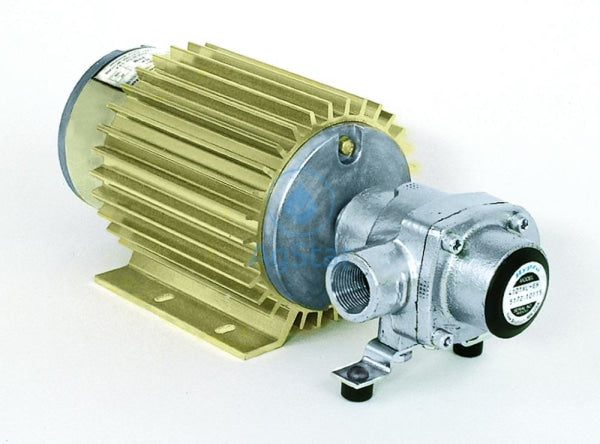

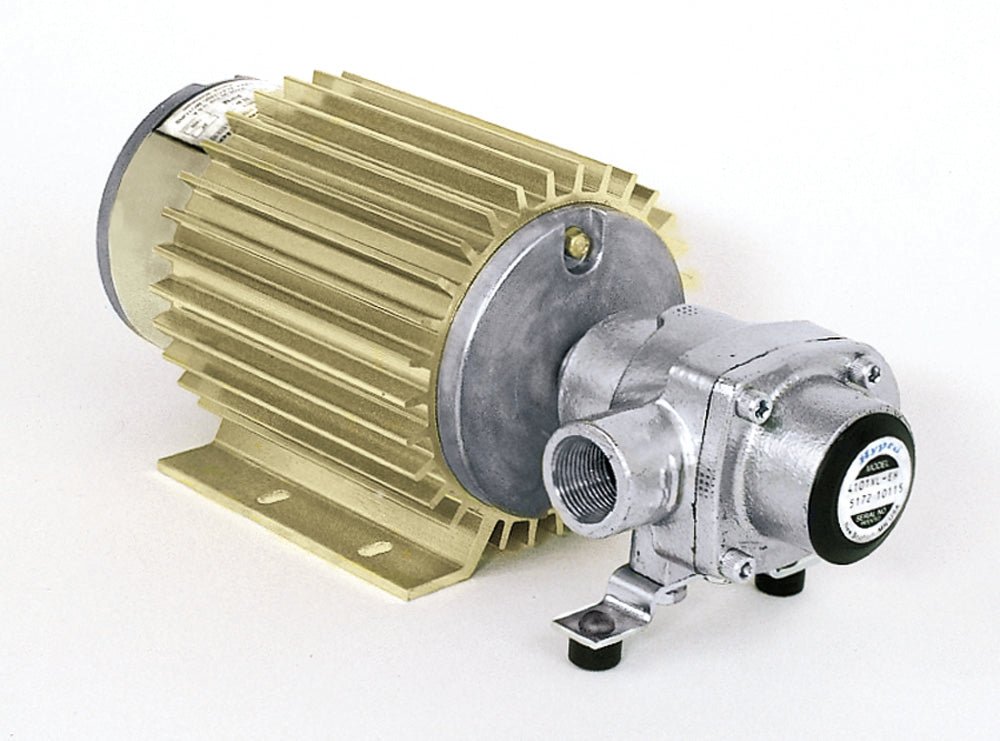

4101XL-E2H Four Roller Pump Silver Series XL 12V DC

HyproSKU: 4101XL-E2H



Super Rollers and Viton® seals standard
 Locking collar and torque arm come in each package
 Rotor: Silvercast (XL)
Weight: 16-18 lbs./7.3-8.2 kg

Port size: 3/4" NPT
Max. fluid temperature: 140°F/60°C
Housing: Silvercast (XL)
 Rollers: Super Rollers standard [Poly (T3) and Teflon® (T2)]
 Shaft Seals: Viton® standard
  Rotor: Silvercast

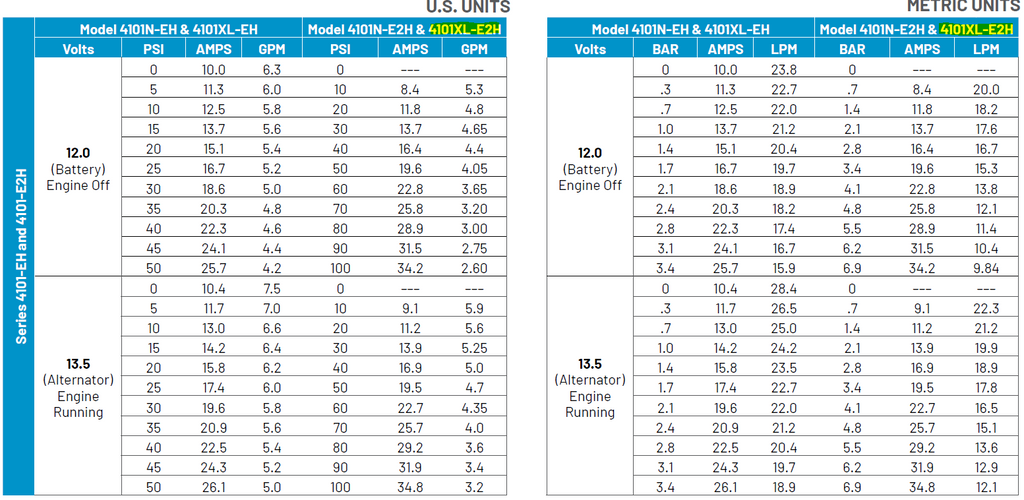

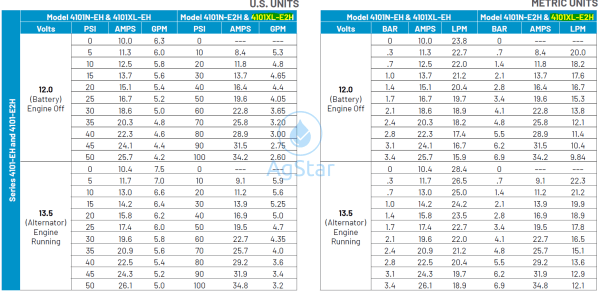

4101XL-E2H Specifications

Max Gpm:5.9

Max LPM:22.3

Max PSI:90

Max Bar:6.2

Max RPM:1600

Shaft Output:1/2”: 12.7 mm

Shaft Design:hollow
