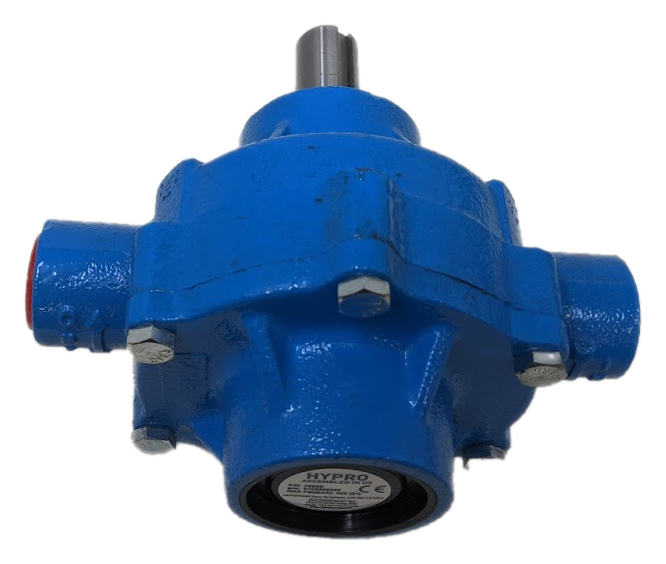

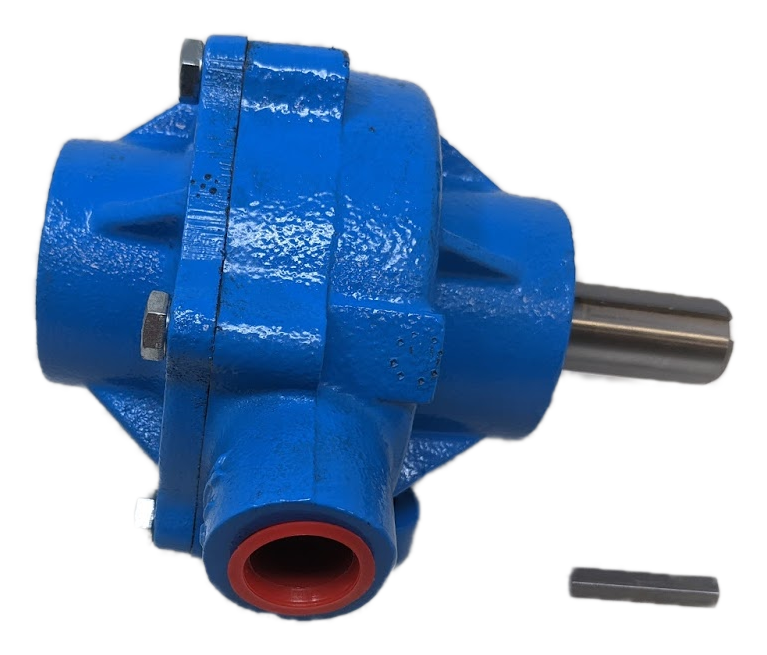

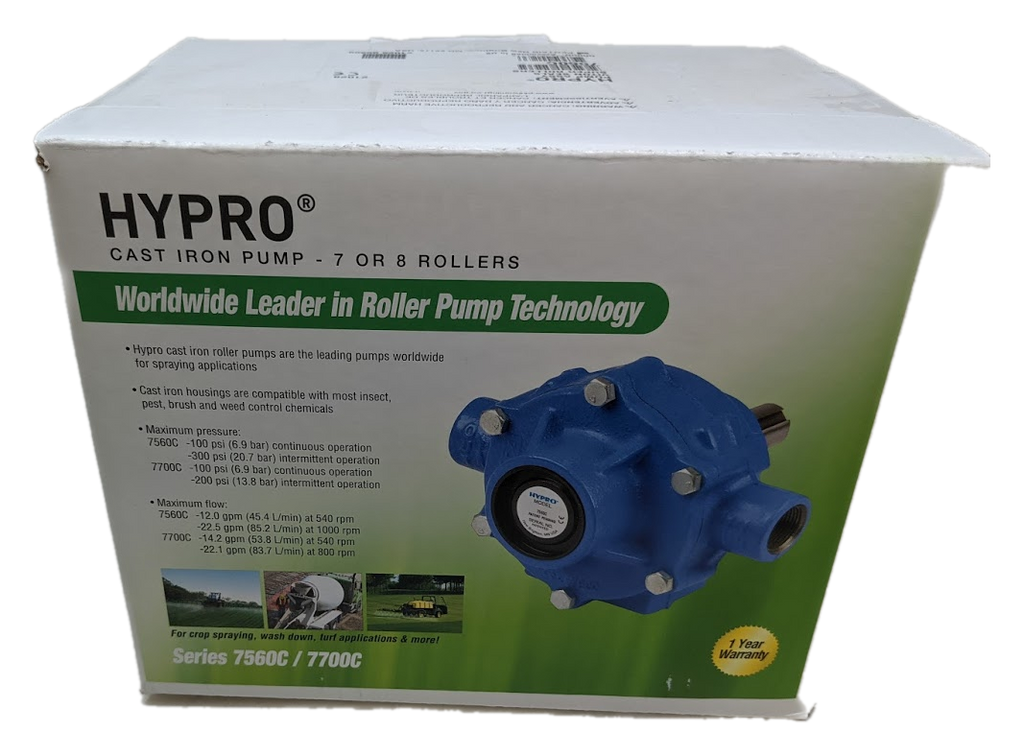

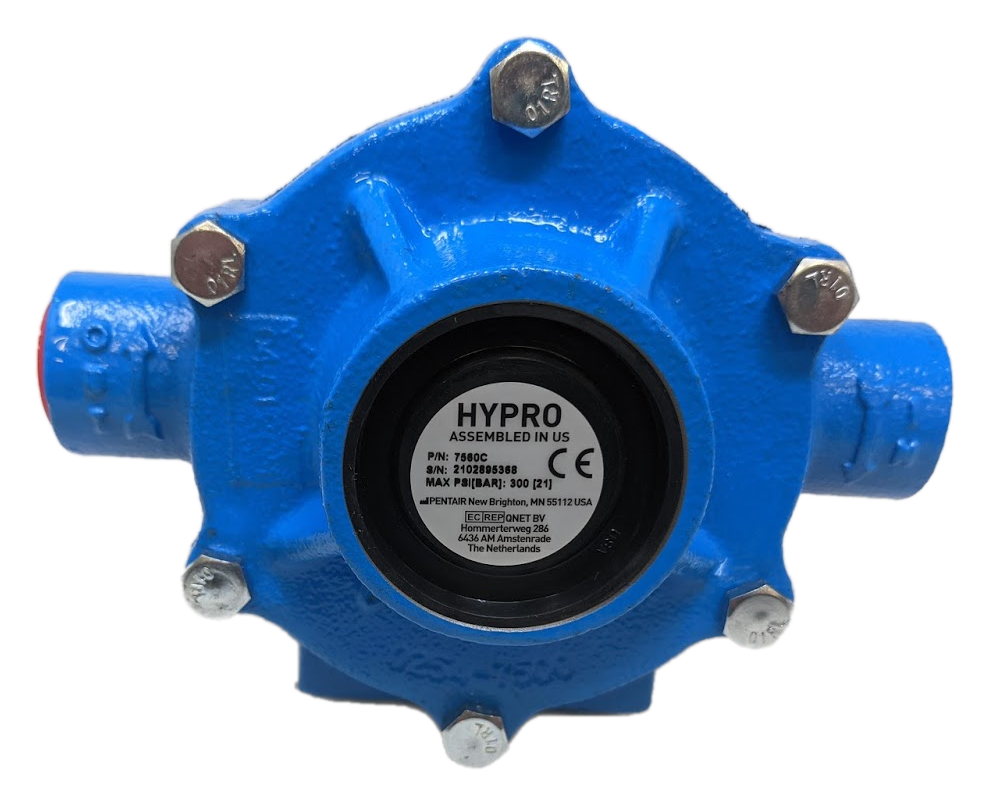

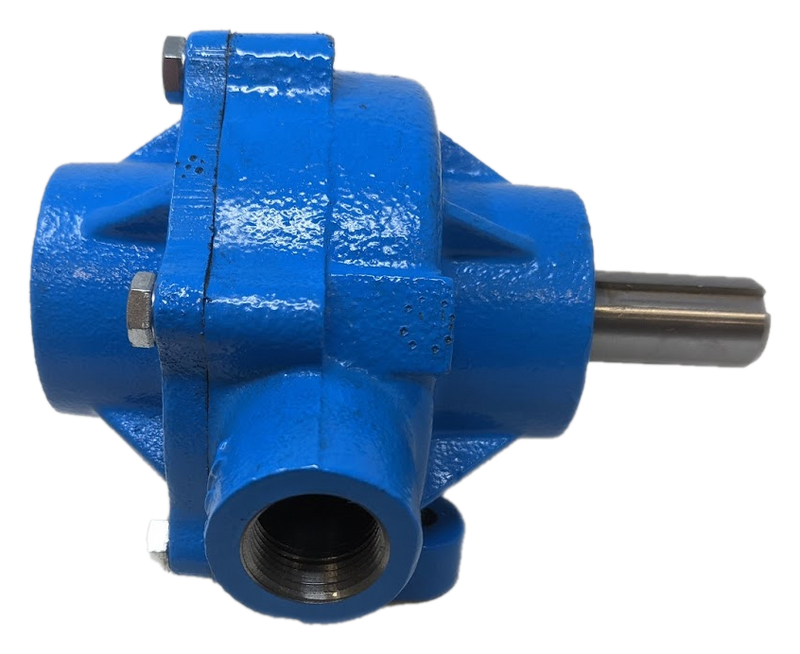

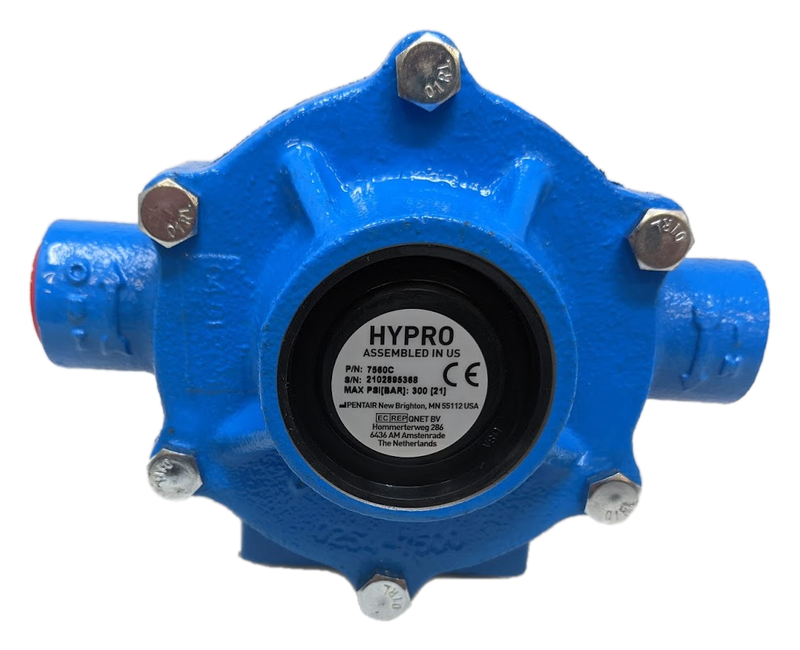

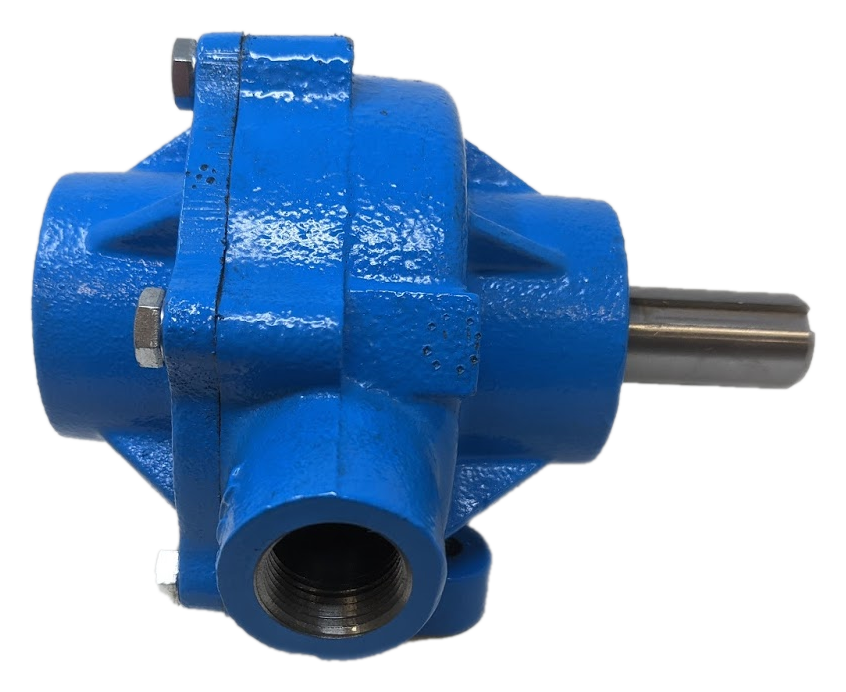

7560C Cast Iron 22.5gpm, 300psi, 1000rpm, 15/16" solid shaft Roller Pump

HyproSKU: 7560C



Hypro 7650C

8 Roller Cast Iron Pump

Port size: 3/4" NPT

Max PSI:300 (26.7bar)

Max Flow:22.5gpm (85.2lpm)

Max RPM:1200

15/68" (23.8mm) Solid shaft

Port size: 3/4" NPT (1" hose barb inlet fitting Included for 1000 rpm operation)

Max. fluid temperature: 140°F/60°C
Housing: Cast Iron (C), Ni-Resist (N) or Silvercast (XL)
Shaft rotation: Counter clockwise when looking at the shaft end
Rollers: Super Rollers standard
Shaft Seals: Viton standard
Available PTO adapters: See page 76
Recommended PTO torque arm kit 3430-0540
Rotor: Cast Iron,
Weight: 13 lbs./5.89 kg
