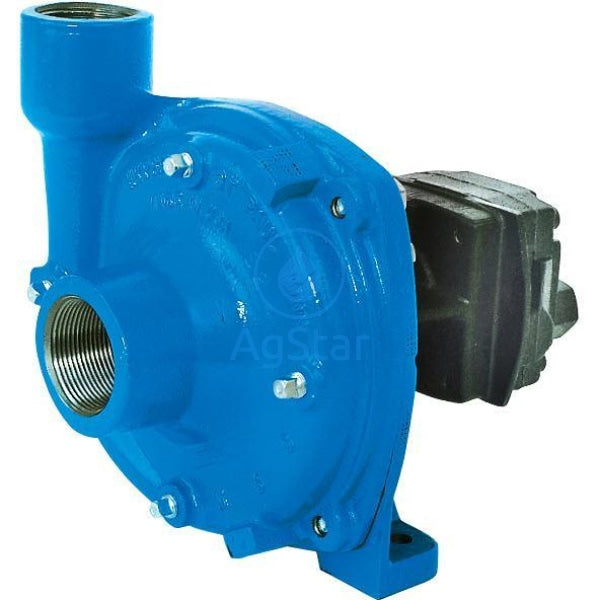

9303C-HM1C-B Pump Life Guard Seal

9303C-HM1C-B
  • Sale
  • Regular price $1,546.88


9303C-HM1C-B
Recommended Hydraulic Flow:11-13gpm
Max Solution Flow:114gpm
Max PSI:130
Hydraulic ports: 0.5 inch NPT inlet, 0.75 inch NPT outlet

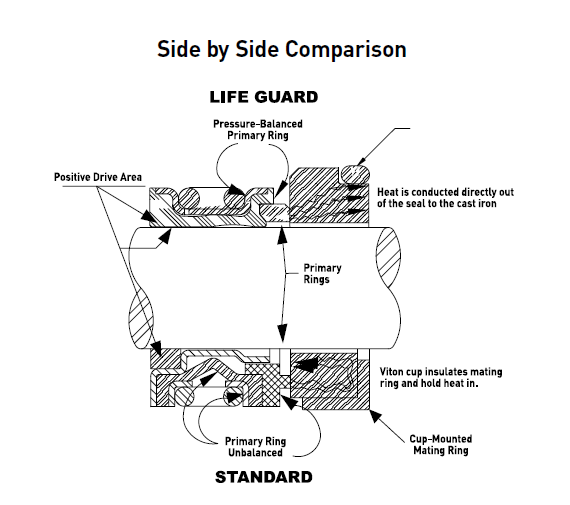

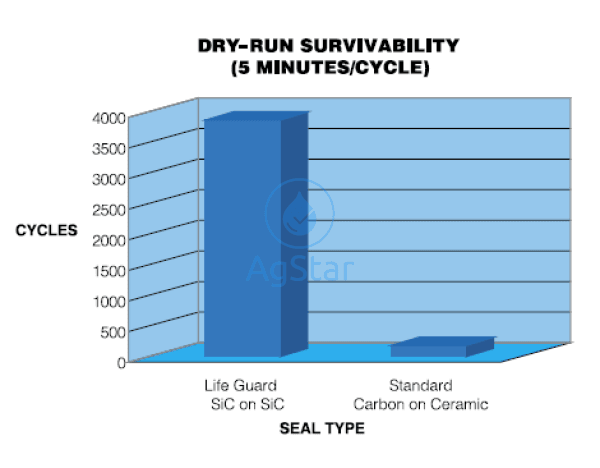

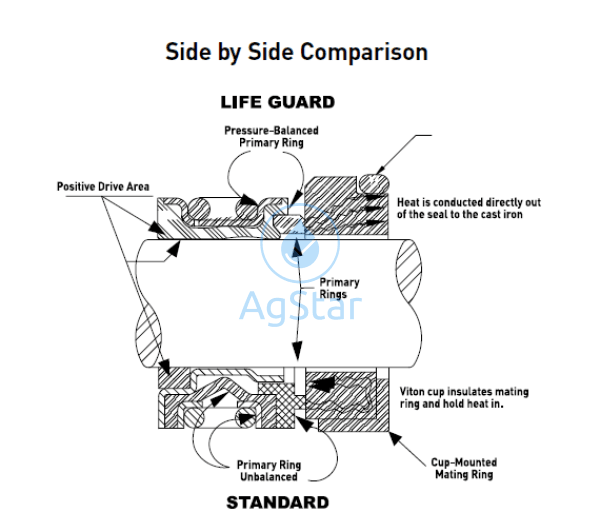

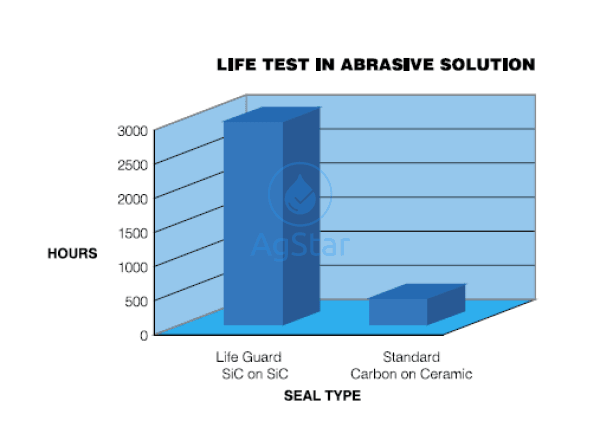

Life Guard Silicone Carbide Seal
Construction Details
-cast iron Housing
- Hydraulic motor drive (for open center, closed center and load-sensing systems)
-1.5NPT Inch Inlet and 1.25 inch NPT threaded outlet on pump housing
- Max. fluid temperature: 140°F/60°C
- Impeller: Cast Iron models – Nylon
- Motor: internal gear gerotor
- Hydraulic ports: 0.5 inch NPT inlet, 0.75 inch NPT outlet

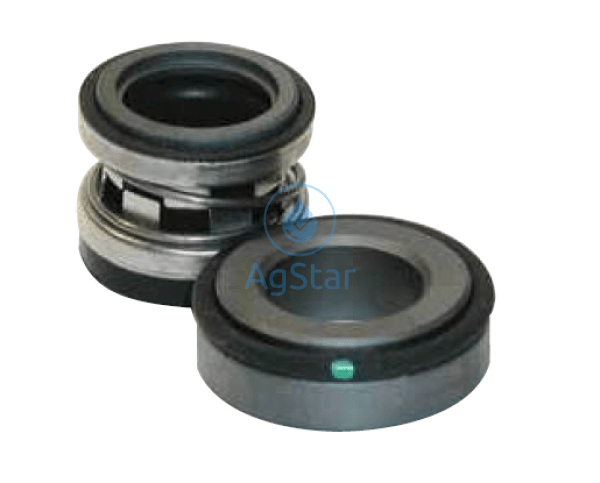

- Life Guard Silicone Carbide Seal
- Hydraulic motor seal: double-lip Teflon® and case drain available
- Max. motor psi: 3000 (bar: 207)
- Weight: 26 lbs./11.8 kg
