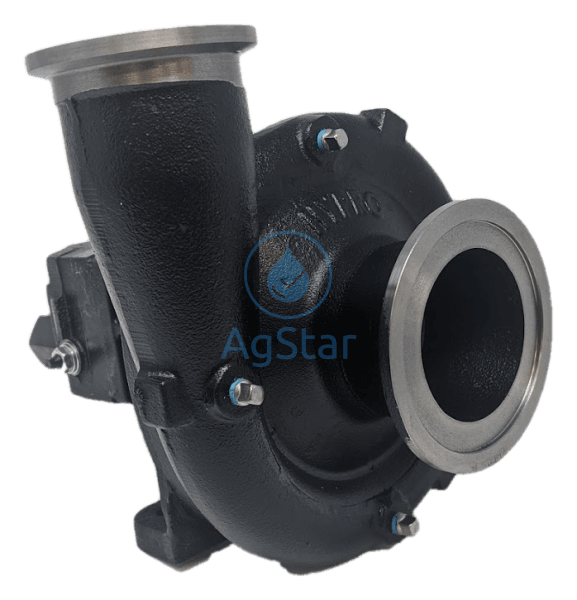

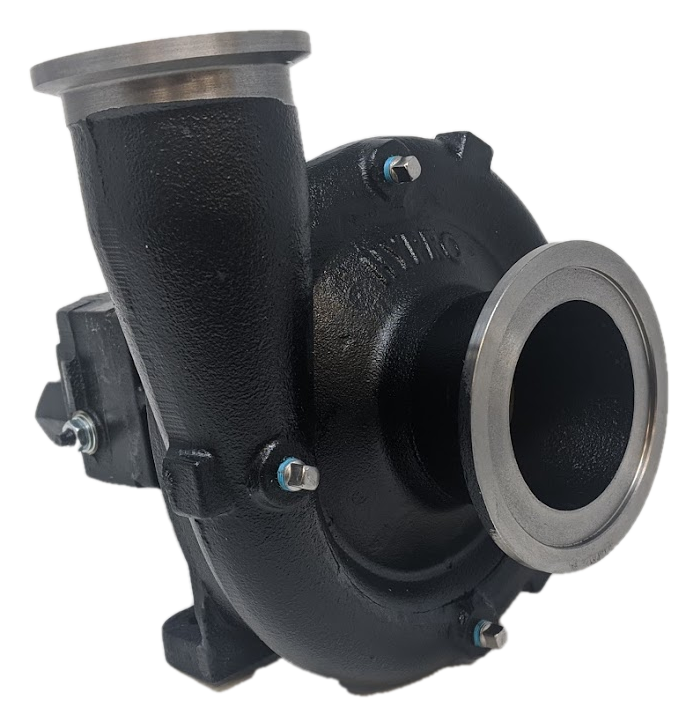

9306C-HM1C-B3U Pump 3" M300 Inlet Flanged M220 Outlet HM1C 11-13gpm Motor

HyproSKU: 9306C-Hm1C-B3U



9306C Pump Flanged M300 Inlet Flanged M220 Outlet

Upgraded Life Guard Silicone Carbide Seal

HM1C Hydraulic Motor Recommended Hydraulic Flow 11-13gpm

Max Flow:283gpm

Max Pressure:127gpm

Cast Iron Housing

  • Hydraulic motor drive (for open center, closed center and  load-sensing systems)
  • Max. fluid temperature: 140°F/60°C
  • Impeller: Nylon
  • Motor: internal gear gerotor
  • Hydraulic ports: 1⁄2" NPT inlet, 3⁄4" NPT outlet
  • Max. motor psi: 3000 (bar: 207)
  • Pump seals: Life Guard silicon carbide (B)
  • Hydraulic motor seal: double-lip Teflon®
  • Weight: 33 lbs./15 kg

For Flanged Connections You Will Also Need: BG-UFC0300 for the inlet and  2" Full port BG-UFC0200 Flange Clamp and Lipped Gasket for the pump outlet


9306 Pumps Parts Breakdown
