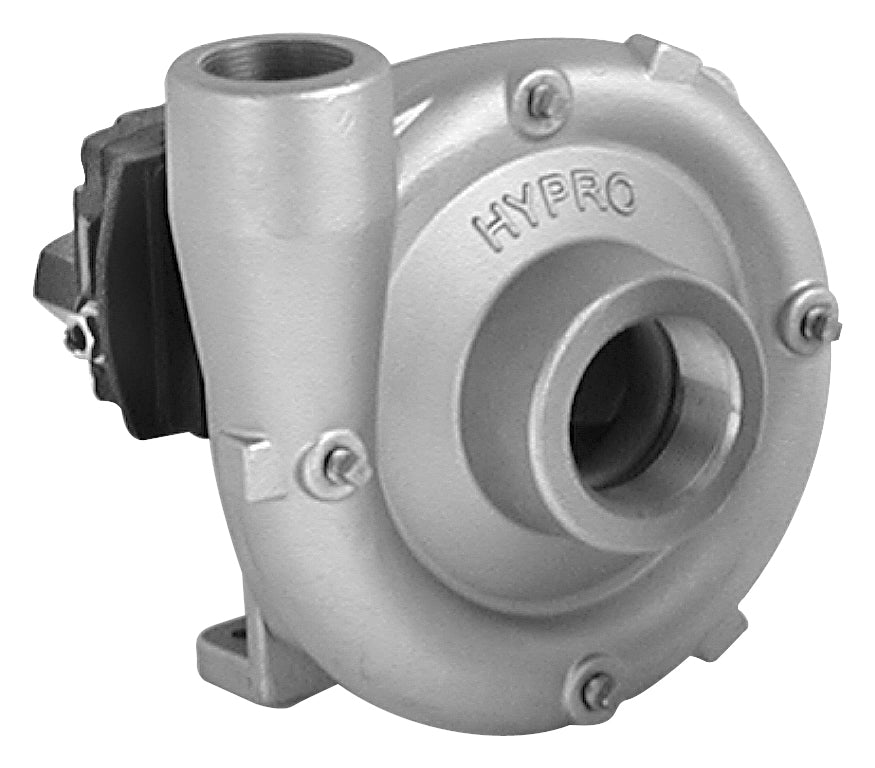

9306S-HM5C Stainless Steel Housing

HyproSKU: 9306S-HM5C



Direct Replacement for John Deere AN206042AKK20040, PM206042S with Life Guard Silicone Carbide Seals and a superior Stainless Steel Housing

-This is the Stainoless Steel Housing Version of AN206042 is used on all 4730, 4830, 4720, and 4710 Serial Numbers ending above 4000

Extend pump life with Stainess Steel
Fact: Chemical corrosion, pump cavitation, and abrasive wear are key factors in pump life

- 316 Stainless Steel pumps provide superior chemical corrosion resistance, while maintaining material strength to prolong the life against abrasive wear
- 316 Stainless Steel resists cavitation pitting of pumps, extending the wear life
- Drop in replacements for cast iron pumps

-Also Available as Flanged,Cast Iron, and Force Field wet Seal

Hydraulic motor drive (for open center, closed center and load-sensing systems)
- Port sizes: 2" NPT inlet, 1.5" NPT outlet;
- Max. fluid temperature: 140 deg F/60deg C
- 316 stainless steel for extended pump life
- polypropylene (stainless steel models)
- Motor: internal gear gerotor
- Hydraulic ports: 1/2" NPT inlet, 3/4" NPT outlet
- Max. motor psi: 3000 (bar: 207)
- Pump seals: Life Guard silicon carbide
- Life Guard seals are the industry standard on OEM equipment
- Hydraulic motor seal: double-lip Teflon and case drain available
- Weight: 33 lbs./15 kg
