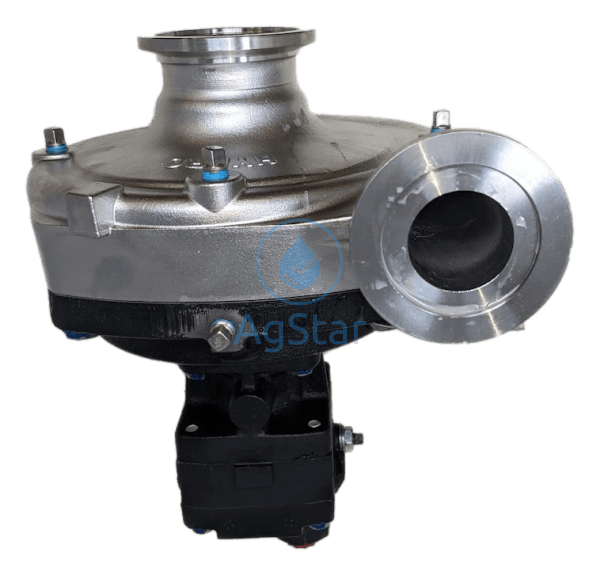

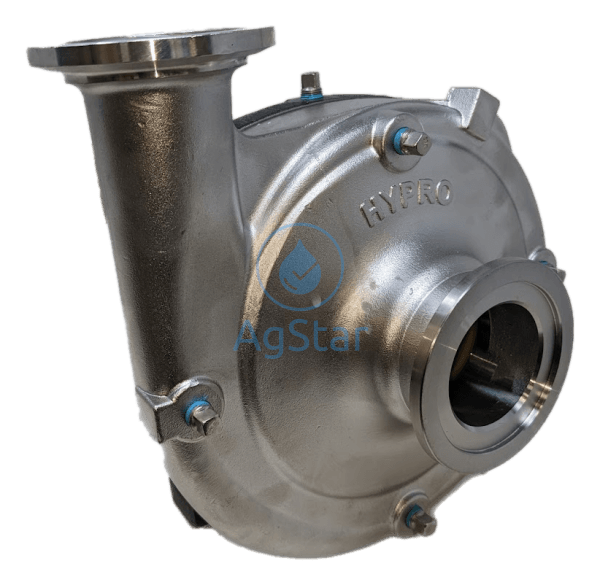

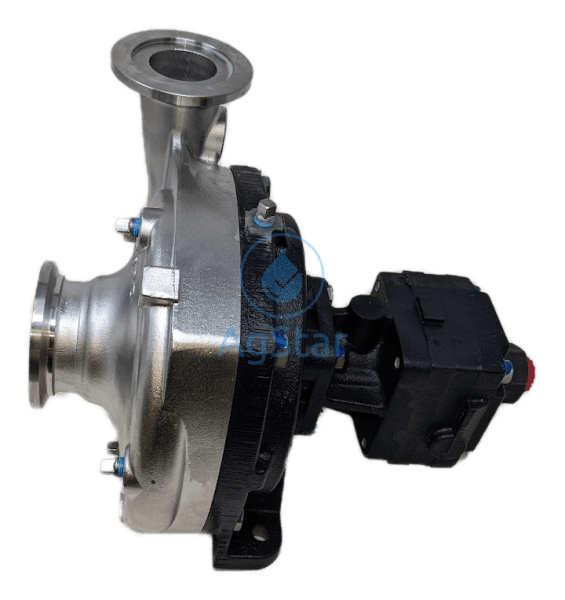

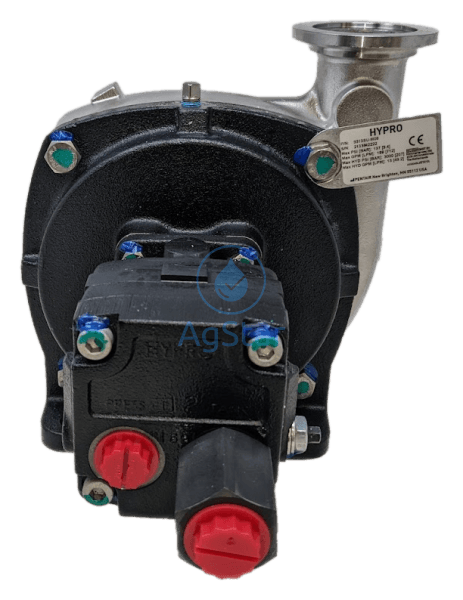

9313SU-M04 Force Field Stainless Steel Housing M220xM200 Inlet/outlet

HyproSKU: 9313SU-M04



Force field wet seal allows for up to 15 minutes of run dry time before seal damage.

This pump features a Stainless Steel Housing and Force Field Wet Seal as an upgrades for the ultimate in longevity and operational availability. Well suited to fertilizers, chemicals, corrosive products and inexperienced operators alike.

 Pump specifications nearly identical to the 9303C-HM2C Pump is commonly used on smaller sprayers and liquid systems

Recommended Hydraulic Flow:5-7gpm

Max Solution Flow:140gpm

Max PSI:90

Force Field Wet Seal technology

 Construction Details -cast iron Housing

  • Hydraulic motor drive (for open center, closed center and load-sensing systems

-M220 Inlet x M200 Outlet

-1.5NPT Inch Inlet and 1.25 inch NPT threaded outlet on pump housing

  • Max. fluid temperature: 140°F/60°C
  • - Impeller: GTX
  • Motor: internal gear gerotor
  •  Hydraulic ports: 0.5 inch NPT inlet, 0.75 inch NPT outlet
  • Hydraulic motor seal: double-lip Teflon® and case drain available
  •  Max. motor psi: 3000 (bar: 207) - Weight: 26 lbs./11.8 kg
