High productivity machines make every minute of operation that much more critical. Take your productivity to the next level with BRS boom recirculation for you John Deere R-Series sprayer equipped with Exact Apply or after market nozzle control system that turns solution flow on and off at the nozzle body.
AIM COMMAND DOES NOT HAVE TO BE PINPOINT 2 OR RAVEN PRODUCT TO WORK WITH THE BRS RETROFIT KIT.
What is BRS boom recirculation and why will it make your operation more productive?

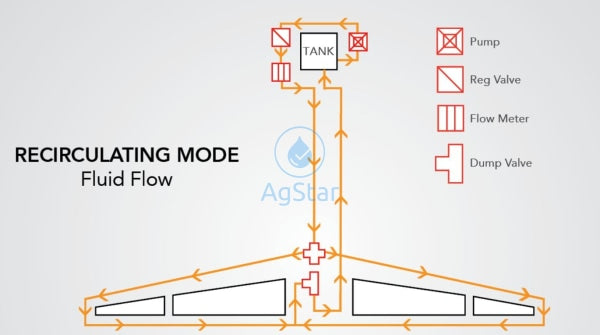

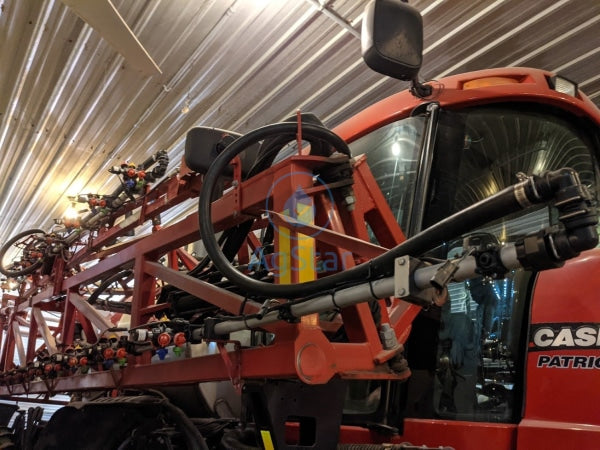

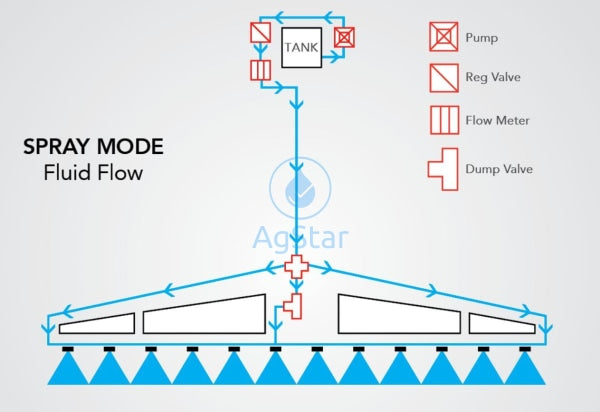

The BRS Boom Recirculation System allows the boom to be plumbed in a single boom line recirculation configuration. This allows the solution flow to travel through the boom and back to the tank when not spraying.
Pressurize and prime the spray line on the way to a job
That means an instant Start, for an immediate fully dispersed spray pattern saving time and chemical product waste
Flush boom lines to tank or to ground (safe disposal)
Provides dual options for drainage and disposal of left over product or rinsate
Hygienic contamination prevention- Eliminates particles settling in boom lines or tank
Far less chance of Costly Carryover Damage from hung up product.
More efficient rinse process to get back in the field crushing acres faster and with confidence
BRS Boom Recirculation System Key Benefits
-Improves efficiency allowing for more acres to be sprayed in the proper application window
-Minimizes the risk of costly carryover damage from product being trapped in boom supply lines
-Reduces operator stress and exposure to chemical
How Does it Work?

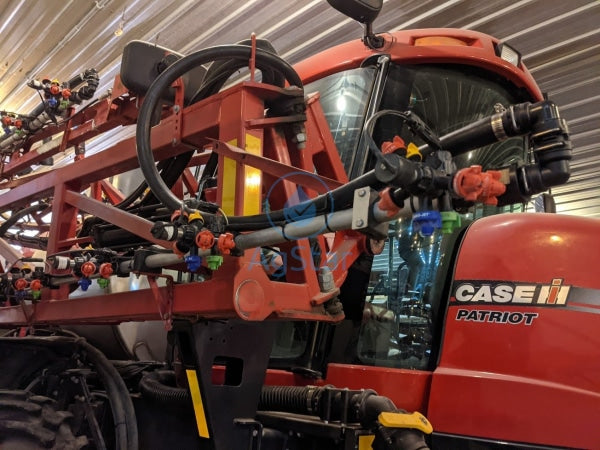

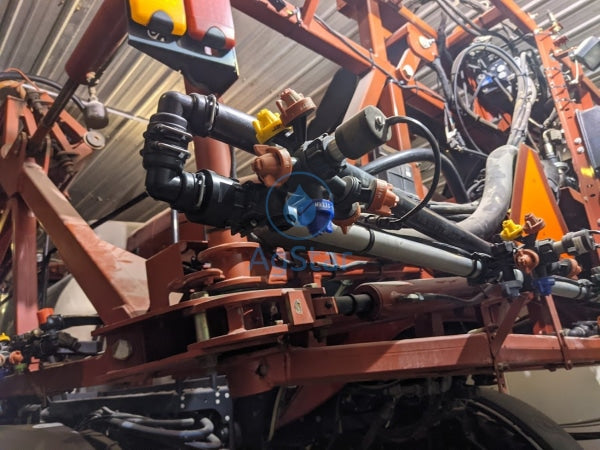

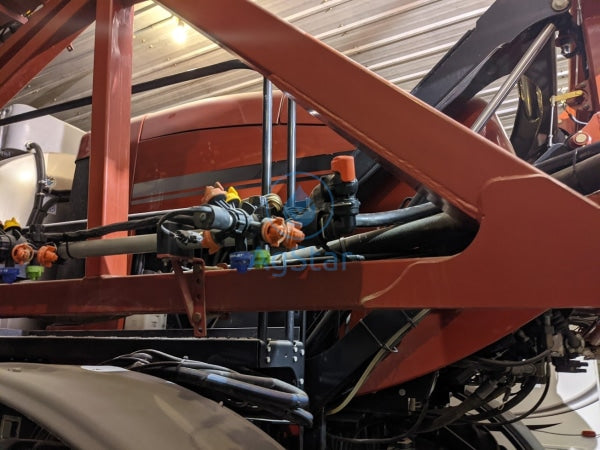

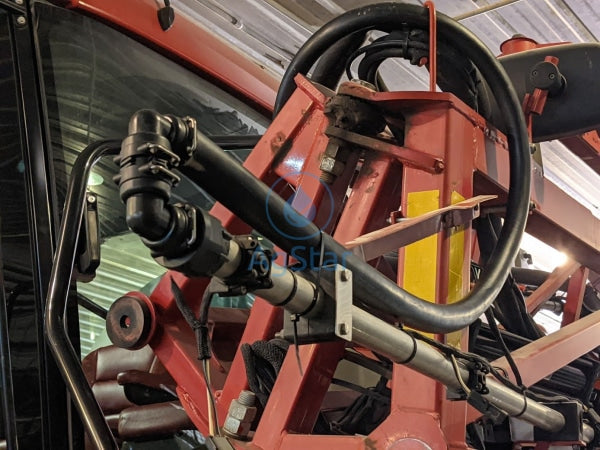

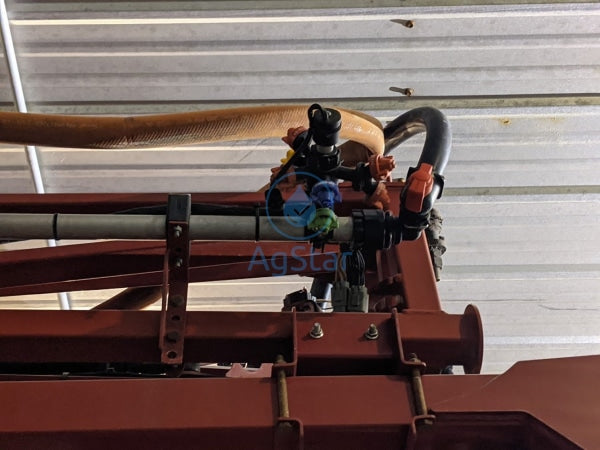

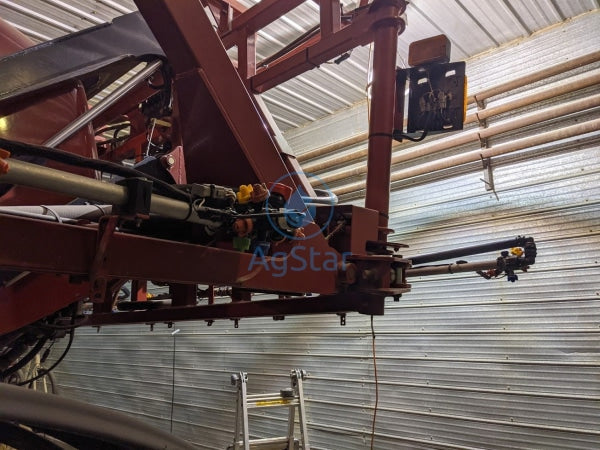

The system is enabled by replacing the boom section end aspirators with a specificially engineered fitting allowing the connection of all of the sections into a single (common rail) line.

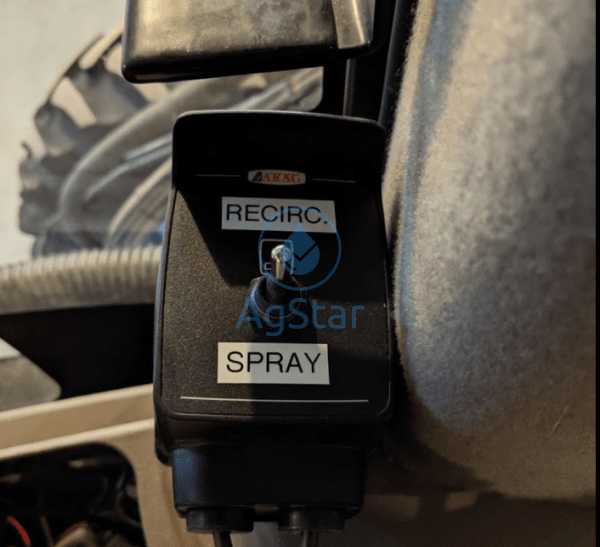

Switching between Spray and Recirculation modes is done by a single in cab switch.

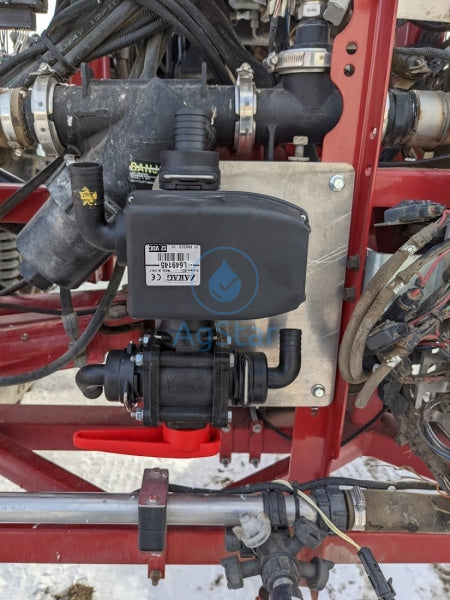

Flushing to ground (safe disposal), is done with a simple manual, ball valve
Is it difficult to install and how long does installation take?
The kit is not complicated to install but will take some time to route hoses and secure them properly. The installation should take less than a day for first time installers
Is anything else needed to complete installation?

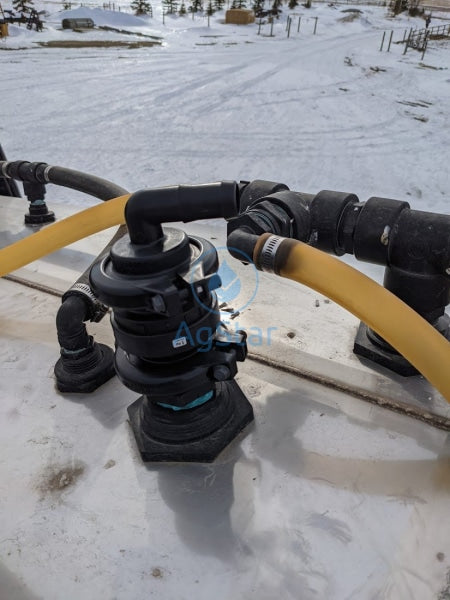

The Kit includes all fittings, valves and the valve switch box.
1" hose and hose clamps will be needed to complete the installation. This Kit is Currently Included in the Price but can be optioned out. Please call or email for details
The installation support kits include:
-Black EPDM 300psi 1" Hose
-Black EPDM 1.25" hose
