Cast Iron 6 Roller PTO Drive Pump

PentairSKU: 6500C

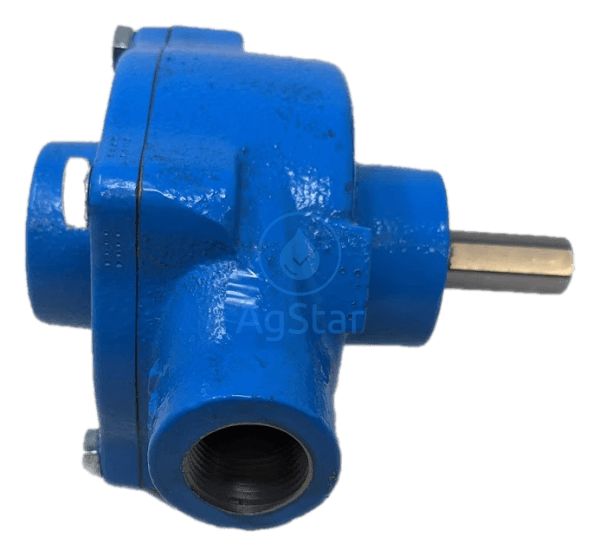

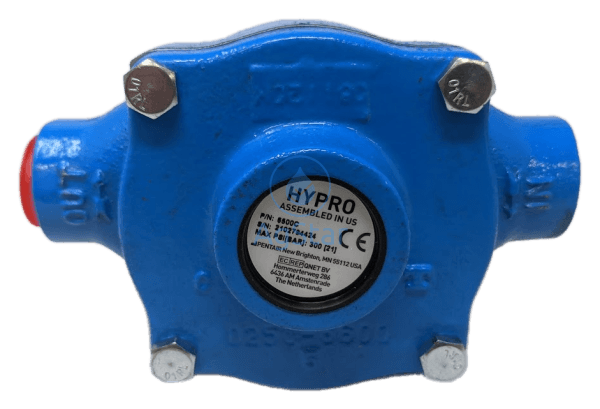

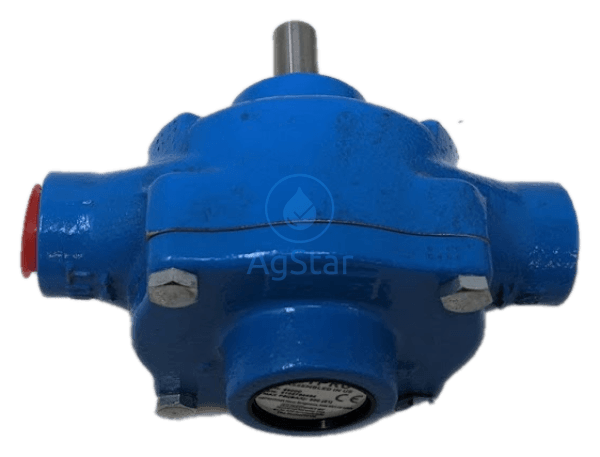

Hypro 6500C

6 Roller Cast Iron Pump

Port size: 3/4" NPT

Max PSI:300 (20.7bar)

Max Flow:21.8gpm (82.5lpm)

Max RPM:1200

5/8" (15.9mm) Solid shaft

Port size: 3/4" NPT (1" hose barb inlet fitting Included for 1000 rpm operation)

Max. fluid temperature: 140°F/60°C
Housing: Cast Iron (C), Ni-Resist (N) or Silvercast (XL)
Shaft rotation: Counter clockwise when looking at the shaft end
Rollers: Super Rollers standard
Shaft Seals: Viton standard
Available PTO adapters: See page 76
Recommended PTO torque arm kit 3430-0540
Rotor: Cast Iron, Ni-Resist or Silvercast
Weight: 9 lbs./4.1 kg
