DigiWolf Visual Flow meter Cell Powered 1.5" (5-106 us gpm) (20 to 400lpm)

4628506
  • Sale
  • Regular price $969.00

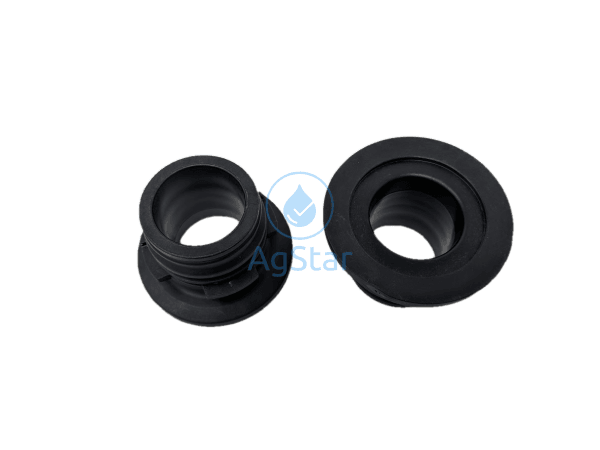

Includes 2" standard Port Manifold Flange Fittings (qty2)

GENERAL FEATURES

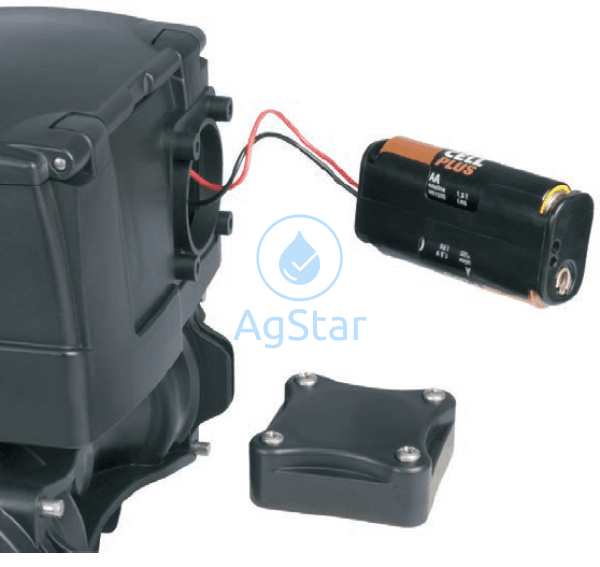

  • ​ 2 cells AA (LR6)
  • Automatic switching on/off
TECHNICAL FEATURES
Benefits
  • High accuracy

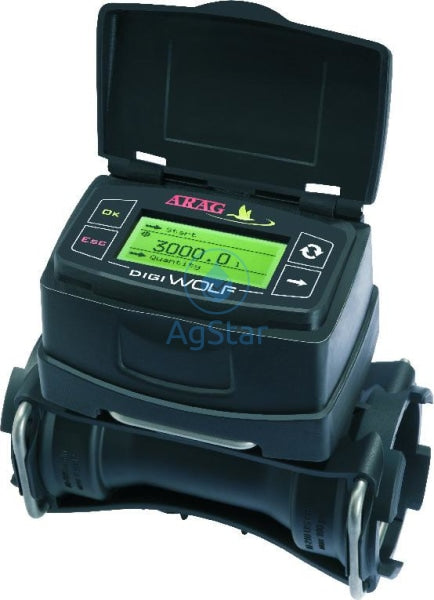

  • Programmable multilingual graphic display
  • No Cables or wiring AA Battery power supply

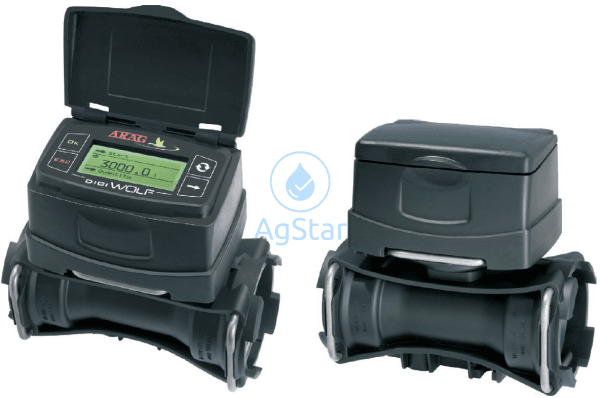

  • Display snap-on cover
  • Body with fork connectors for flexible connection layout
  • Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accuracy
  • Paddle assembly equipped with ‘TWIST’ system for either cleaning or replacing operations without the need of any tools
  • Fully sealed and watertight electronic sensor



Code 4628506
Fork Coupling (T) T6 F
Ø  1" 1/2
Flow rate 20-400 l/min
Flow rate  5-106 US GPM
Pressure 12 bar
Pressure  174 PSI
Pressure Drop 0,5 bar
