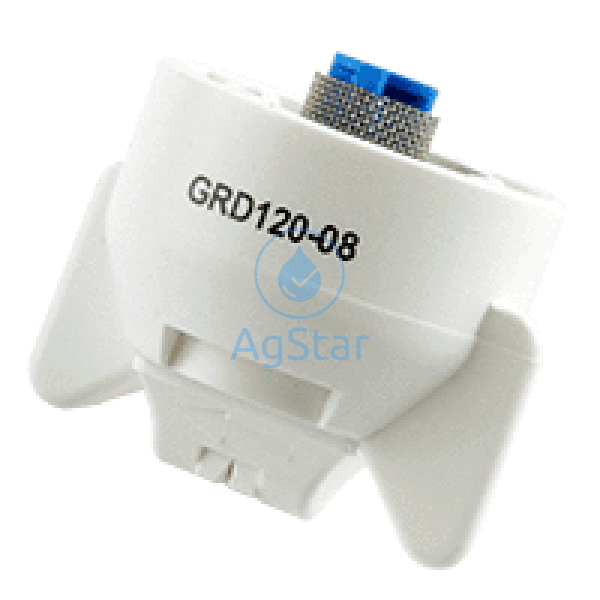

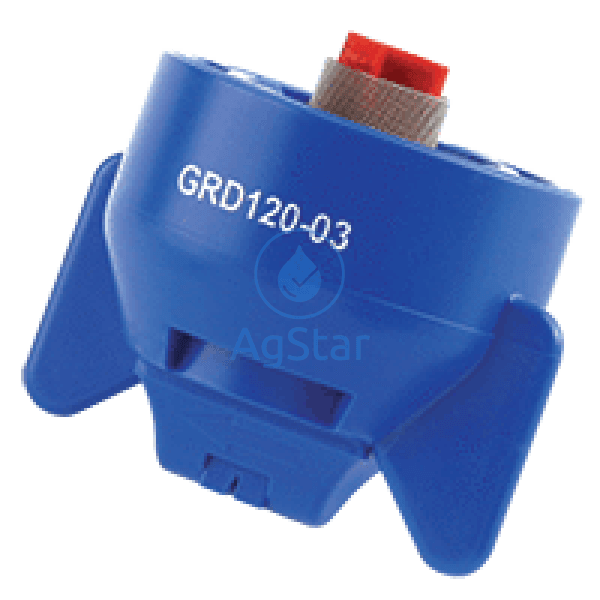

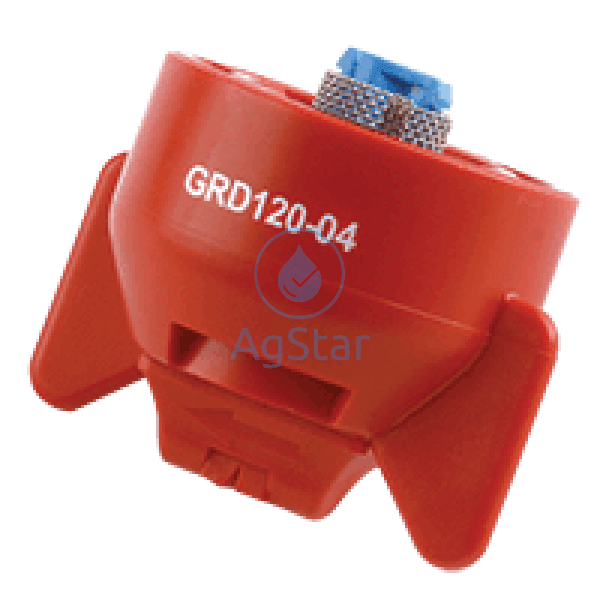

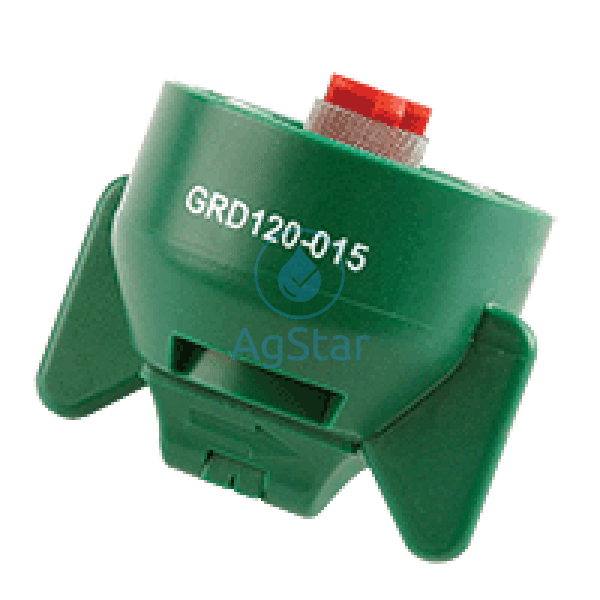

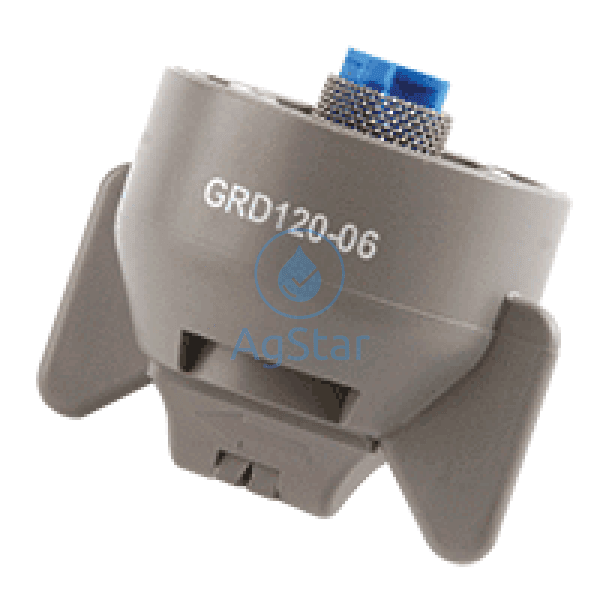

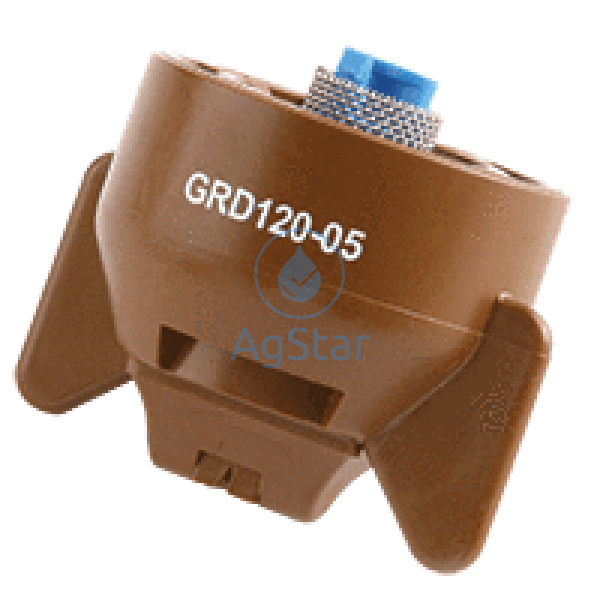

Guardian Nozzles

GRD120-01
  • Sale
  • $8.66
  • Regular price $11.45


Solid nozzle choice for PWM systems such as Exact Apply, Capstan Sharpshooter and Pinpoint, Aim Command and Hawkeye.  Variable droplet spectrum for on the fly droplet size adjustments by varying target pressure. Wide range of orifice sizes. Also an Economical choice for directional fungicide application and a drift reducing option on Pulltype sprayers.

 FEATURES

  • Delivers a more consistent droplet and spray pattern, making it versatile for more rates and speeds
  • All-in-one FastCap Complete design eliminates loose tips, caps, gaskets and strainers for easier installation and safer handling

DESIGN

  • The wide 120° pattern is inclined 20° to enhance application versatility
  • A bold arrow clearly indicates incline direction for easy installation
  • Aim rearward for general spraying and to target broadleaf canopies and horizontal leaves
  • Aim forward to hit vertical targets, small-bladed grasses, and the upper canopy
  • Alternate nozzles forward and rearward to create a twin spray in a dense canopy

 Guardian Performance Chart

Guardian Order Information



PWM Performance Chart 20"

PWM Performance Chart 15"

 Spray It Nozzle Selection Tool



 Replaces John Deere nozzles PSLDXQ2001, PSLDXQ20015, PSLDXQ2002, PSLDXQ20025, PSLDXQ2003, PSLDXQ2004, PSLDXQ2005, PSLDXQ2006, PSLDXQ2008
