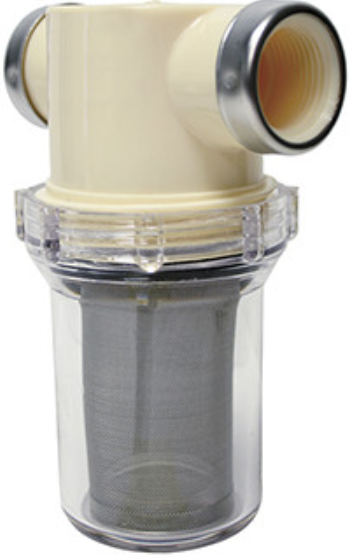

Nylon Line Strainer Clear Bowl 80 mesh 0.75 inch fpt

3350-0035P
  • Sale
  • Regular price $36.40


Buna seals nylon head clear polyimide bowl Rated for 150 psi at 70ºF / 10.34 bar at 21ºC Rated for 100 psi at 125ºF / 6.9 bar at 51.6ºC 140ºF max./ 60ºC max. Nylon line strainers are ideal for suction or pressure applications. They are rated for higher pressure applications, up to 150 PSI at 70 degrees Fahrenheit (10 bar at 20 degrees Celsius) and 100 PSI at 125 degrees Fahrenheit (7 bar at 50 degrees Celsius). The maximum temperature rating is 140 degrees Fahrenheit (60 degrees Celsius). low profile strainer features a versatile dual thread 1/4" FNPT and 1/2" MNPT design for use in a variety of installations and is only available with the clear polyamide bowl which allows for visual inspection without disassembly 1/2", 3/4", 1", 1-1/4", and 1-1/2" models have internal (NPT) female ports and are available with white type 6 nylon or clear polyamide bowls low profile strainer features a versatile dual thread 1/4" FNPT and 1/2" MNPT design for use in a variety of installations and is only available with the clear polyamide bowl which allows for visual inspeciton without disassembly 1/2", 3/4", 1", 1-1/4", and 1-1/2" models have internal (NPT) female ports and are available with white type 6 nylon or clear polyamide bowls
