Add angle or repurpose your favourite nozzles and alternate or angle the spray pattern for more effective coverage of small weeds in early spring or post harvest conditions*
Have a specific target to reach?
Need a compact solution to create an effective angle of penetration?

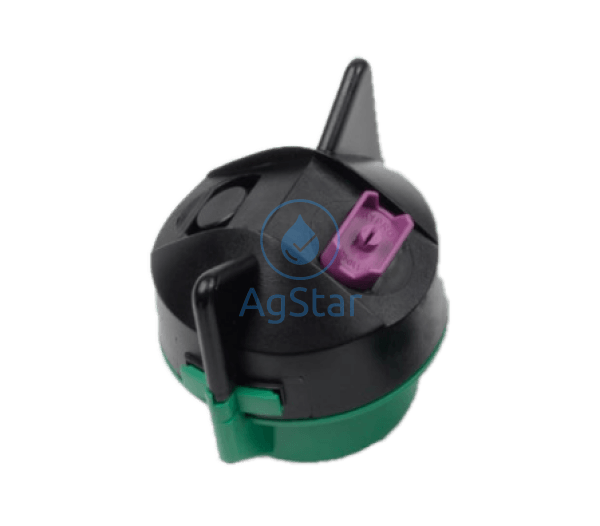

Consider the twin cap nozzle holder combined with a blanking plug to utilize just one of the nozzle positions.
When Used with a single Non angled nozzle the Twin Cap equipped with Blanking Plug creates a 30 degree angle of attack
When combined with a 3D Nozzle you can achieve a nearly 67 deg angle.
Use a Guardian Air or CFAT-Air Stubble Jet nozzle and you can realize an Air induction nozzle with Coarse to Very Coarse droplets and a 40 or 43 degree spray angle respectively
- Blanking cap can be removed to use a combination of two Nozzles
- There is no offset on cap so when alternating the spray direction along the boom spray patternation remains excellent
- A blanking cap allows for the use of larger flow rate nozzles and coarse droplets than using two nozzles with the twin cap.
- Tests carried out in the wind tunnel at TAG Silsoe showed an alternating 300 spray gave an 8% increase in spray coverage on artificial small grass targets in comparison with a vertical spray.
