Pro Flow Nozzle Body 5-way 1" Viton

HyproSKU: 4243N-B524V

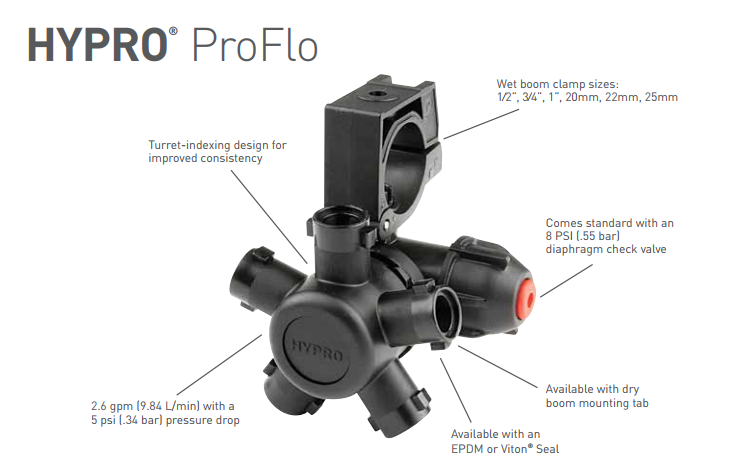

- Three turret styles for an easy change of spray nozzles: single, 3-way, and 5-way
- Provides lowest pressure drop at any given flow in the industry
- 2.6 gpm (9.84 LPM) with a 5 psi (.345 BAR) pressure drop
- Available in wet or dry boom versions
- Positive shutoff between each spray position

- Designed to deliver the highest flow rates across the spraying pressure range

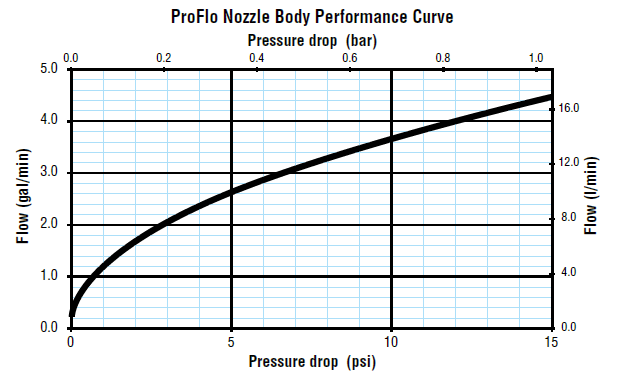

- Unique DCV (diaphragm check valve) design reduces restrictions in the flow path, enabling 2.6 gpm (9.8 lpm) with a 5 psi (0.34 bar) pressure drop through the nozzle
- Supports faster field speeds with the same coverage and supports direct fertilizer application through the nozzle body DCV flow path
- Turret-indexing design provides improved consistency and reliability throughout the life of the nozzle body ? eliminating free spinning and seizing problems seen on competitive nozzle bodies
- Bayonet style attachment allows for automatic spray alignment using flat fan spray nozzles
- Compact design makes mounting easier with less potential interference with the spray boom structure
- ProFlo nozzle bodies come standard with an 8 psi (.55 bar) diaphragm check valve. 4 psi (.27 bar), 12 psi (.82 bar), 20 psi (1.37 bar), and 25 psi   (1.72bar)checks are available as options
