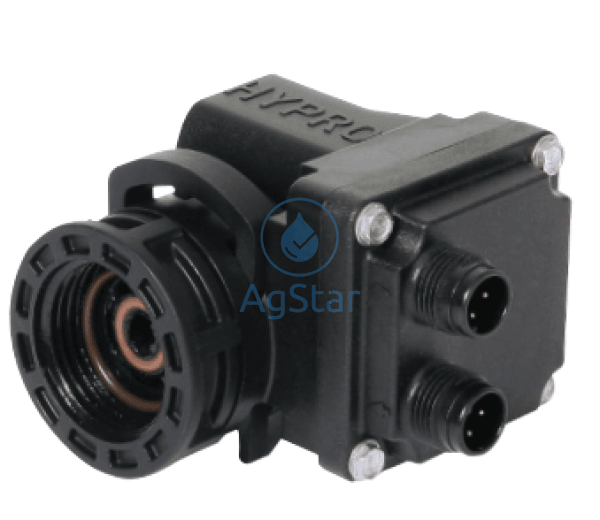

Pro Stop-E Solenoid

HyproSKU: 3305-0011

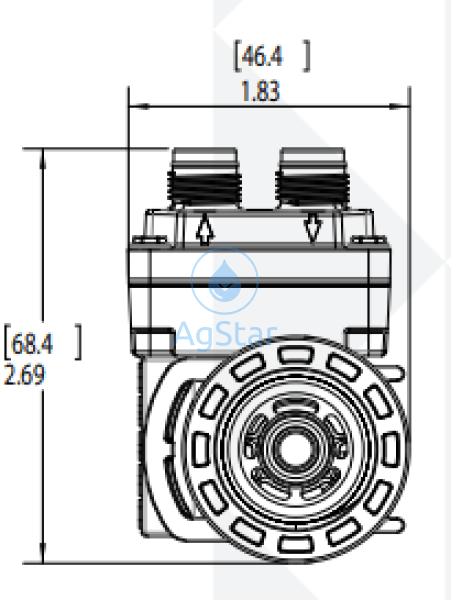

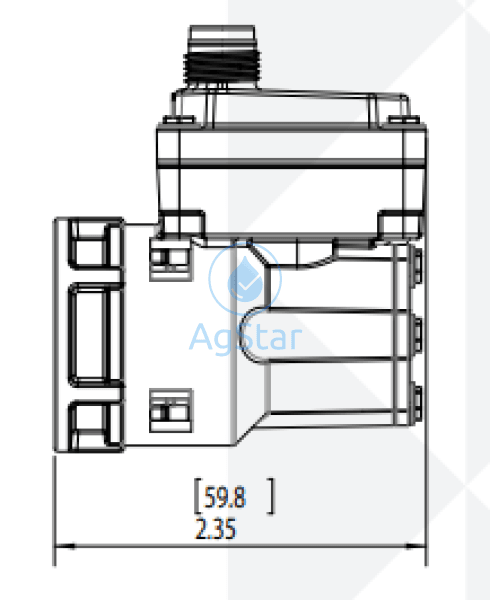

Add this check valve to turn flow on or off at a nozzle body. Fits all Hypro Style nozzle Bodies with a DCV Diaphragm Check Valve. Pentair’s Hypro ProStop-E provides instantaneous on/off control with 12 volt actuation, eliminating misapplications and waste. The valve utilizes a robust, quarter-turn electric ball valve that is highly reliable as compared to solenoid and plunger valves. The ProStop-E valve continuously utilizes an extremely low amount of power and provides a high flow capacity in a compact valve design. Performance • Environmental extreme (non-functioning): -40°C to 82°C (-40°F to 180°F) • Environmental functional operational: 1.6°C to 48°C (35°F to 120° F) • Ingress protection rating: IP67 • Max opening pressure: 10 Bar (150 PSI) • Burst pressure: 20 Bar (290 PSI) • Reaction Time (Close to open): o 180 milliseconds @ 250mA o Continuous (running state) 30mA • Voltage range: 9 to 16 VDC • Flow characteristics when installed on ProFlo nozzle body: o 7.57 LPM @ 0.34 Bar (2.0 GPM @ 5 PSI Pressure Drop) Physical Properties • Dimensions: 59.8mm x 46.4mm x 68.4mm (2.35 in x 1.83 in x 2.69 in) • Valve mounting: Fits all HYPRO nozzle bodies (ISO 228-G ¾ threads) • Materials: FKM, Nylon, Viton, Stainless Steel • Electrical connection: M12 • Weight : 227g (0.5 lbs) on 5-way nozzle body
