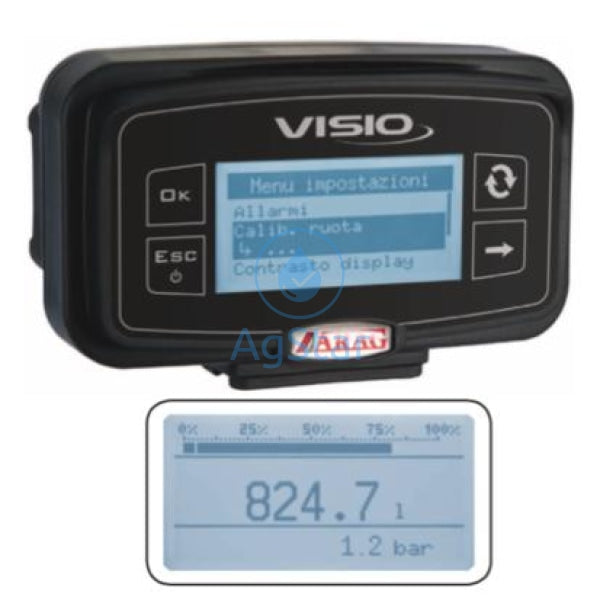

Digital Tank Level System with Visio Display

4670610
  • Sale
  • Regular price $2,300.00


Accurate to between 0.25% to 0.5% of maximum tank capacity.

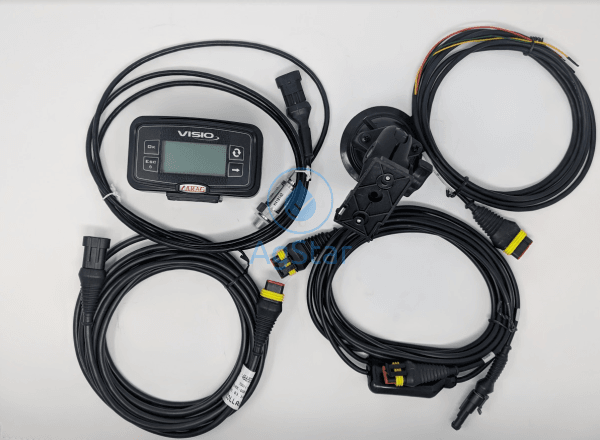

Includes all cables for installation-Sensor uses 0.25 inch Male Threads comes with bulkhead adaptor

Please call for installation options for different makes and models Includes Suction Cup Mount Includes 5M Extension Cable Features

• Manual or automatic software (through flowmeter) for tank calibration, can save up to 200 points.

• Can export/import tank calibration curves to/from other ARAG devices (Visio, Bravo 180S-300S-400S) to avoid repeating the calibration procedure.

• Tank minimum level alarm.

• Level reached during filling alarm.

• Can display job (tank fill or spray boom) pressure by selecting pressure sensor option.

• Minimum and maximum pressure alarms.

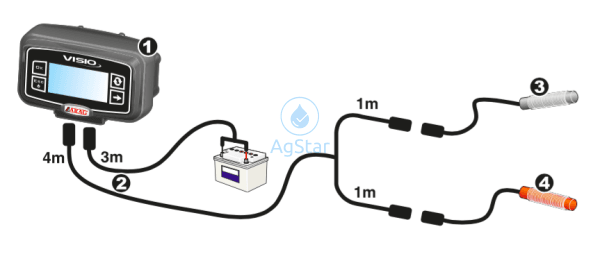

OM Visio With Tank Level and Optional Pressure Sensor

OM Visio with Tank Level & Optional Fill Check

OM Visio with tank level and rpm sensor with fill check
